Fiberglass or steel wire reinforced communication optical fiber self-supporting FTTH drop cable

Outdoor FTTX Single-Mode Fiber Optic Cable Gyxtc8s Cable Figure 8 Central Loose Tube Cable We are  fiber optic cable manufacturer.Welcome to go to the factory tour!Send message to us can get FREE SAMPLES. Detailed Photos Characteristics        · High tensile strength

Featured Products

Outdoor FTTX Single-Mode Fiber Optic Cable Gyxtc8s Cable Figure 8 Central Loose Tube Cable


We are  fiber optic cable manufacturer.
Welcome to go to the factory tour!
Send message to us can get FREE SAMPLES.

Detailed Photos


Self-Supporting FTTH Drop Fiber Optic Cable with FRP or Steel Wire Strengthen Communication FiberSelf-Supporting FTTH Drop Fiber Optic Cable with FRP or Steel Wire Strengthen Communication Fiber


Characteristics

        · High tensile strength of stranded wires meet the requirement of self-supporting and reduce the
          installation cost
        · Good mechanical and temperature performance
        · High strength loose tube that is hydrolysis resistant
        · Special tube filling compound ensure a critical protection of fiber
        · PSP enhancing moisture-proof
        · Small diameter, light weight and friendly installation
        · Long delivery length and low price.


Optical Characteristics

 G.652G.65550/125μm62.5/125μm
Attenuation
(+20ºC)
@850nm  ≤3.0 dB/km≤3.0 dB/km
@1300nm  ≤1.0 dB/km≤1.0 dB/km
@1310nm≤0.36 dB/km≤0.40 dB/km
@1550nm≤0.22 dB/km≤0.23dB/km
Bandwidth (Class A)@850nm  ≥500 MHz·km≥200 MHz·km
@1300nm  ≥1000 MHz·km≥600 MHz·km
Numerical Aperture  0.200±0.015NA0.275±0.015NA
Cable Cut-off Wavelength λcc≤1260nm≤1480nm

Technical Parameters

Cable TypeFiber CountCable Diameter
mm
Cable Weight kg/kmSupporting Wire SpecConnection DiameterTensile Strength
Long/Short Term            N
Crush Resistance
Long/Short Term
N/100mm
Bending Radius
Static
/Dynamic
mm
GYXTC8S2~127.65×14.5118Φ1.0mm*7
Stranded wires
Height×Width
3.0×2.5 mm
1000/2500300/100080/160
GYXTC8S14~248.2×15.1129Φ1.0mm*7
Stranded wires
Height×Width
3.0×2.5 mm
600/1500300/100090/180

G.652.D single mode fiber
characteristicsConditionsUnitsSpecified values
Optical properties
Attenuation1310nmdB/km≤0.34
 1383nmdB/km≤0.34
 1550nmdB/km≤0.20
 1625nmdB/km≤0.24
Attenuation vs. Wavelength

Max. α  difference  @1310nm
1285~1330nmdB/km≤0.04
 @1550nm1525~1575nmdB/km≤0.03
Dispersion  Coefficient1285nm~1340nmps/(nm.km)-3.5~3.5
 1550nmps/(nm.km)≤18
 1625nmps/(nm.km)≤22
Zero dispersion wavelength nm1300nm~1324nm
Zero dispersion slope ps/(nm2.km)≤0.092
Typical Value ps/(nm2.km)0.086
Polarization mode dispersion coefficient PMD
Single fiber maximum value ps/≤0.20
Fiber link value(M=20,Q=0.01%) ps/≤0.10
Typical value ps/0.04
Cable cut-off wavelength λcc nm≤1260
Mode field diameter MFD1310nmμm9.2±0.4
 1550nmμm10.4±0.5
Point Discontinuities1310nmdB≤0.05
 1550nmdB≤0.05
Geometric characteristics
Cladding diameter μm124.5±1.0
Cladding non-circularity %≤1.0
Coating diameter μm242±7
Coating-cladding concentricity error μm≤12.0
Curl (radius) M≥4
Delivery length km/reel2.1~50.4
Environmental characteristics(1310nm,1550nm,1625nm)
Temperature Dependence Induced Attenuation-60ºC ~+85ºCdB/km≤0.05
Temperature-Humidity Cycling Induced Attenuation-10°C to +85°C, 98% RHdB/km≤0.05
Water Immersion Dependence Induced Attenuation23°C,for 30 daysdB/km≤0.05
Damp Heat Dependence Induced Attenuation85°C and 85% RH,for 30 daysdB/km≤0.05
Dry Heat Aging85ºCdB/km≤0.05
Mechanical properties
Proof test GPa≥0.69(100kpsi)
Macro-bend Induced Attenuation
1 turnФ32mm1550nmdB≤0.05
100 turns Ф60mm1625nmdB≤0.05
Coating Strip ForceTypical average forceN1.5
 Peak forceN1.0~8.9
Dynamic fatigue parameter  ≥20






Outdoor 2/4/8/12/16/24/30 Core Stranded Messenger Wire Self-Supporting Aerial Figure 8 Cable Armored Optical Fiber Cable GYTC8S/Gyxtc8s

Outdoor 2/4/8/12/16/24/30 Core Stranded Messenger Wire Self-Supporting Aerial Figure 8 Cable Armored Optical Fiber Cable GYTC8S/Gyxtc8s
Outdoor 2/4/8/12/16/24/30 Core Stranded Messenger Wire Self-Supporting Aerial Figure 8 Cable Armored Optical Fiber Cable GYTC8S/Gyxtc8s
Outdoor 2/4/8/12/16/24/30 Core Stranded Messenger Wire Self-Supporting Aerial Figure 8 Cable Armored Optical Fiber Cable GYTC8S/Gyxtc8s




Outdoor 2/4/8/12/16/24/30 Core Stranded Messenger Wire Self-Supporting Aerial Figure 8 Cable Armored Optical Fiber Cable GYTC8S/Gyxtc8s
Outdoor 2/4/8/12/16/24/30 Core Stranded Messenger Wire Self-Supporting Aerial Figure 8 Cable Armored Optical Fiber Cable GYTC8S/Gyxtc8s
Outdoor 2/4/8/12/16/24/30 Core Stranded Messenger Wire Self-Supporting Aerial Figure 8 Cable Armored Optical Fiber Cable GYTC8S/Gyxtc8s



Company Profile

Guangdong Juxianlan Communication Co., Ltd. Was established in 2014 and specializing in manufacturing fiber optic products and providing fiber optic solutions and engineering services in Guangdong, China.

As a professional cable manufacturer, we are committed to providing customers around the world with comprehensive products, the latest technology, and professional services to help customers to build a high-quality network platform. Combining with the actual needs of customers, we are providing individualized and comprehensive solutions to meet customers′ demands.

We offer the whole range of equipment for fiber optic, Telecom (FTTH, 4G/5G Mobile Stations, etc. ), Ethernet, and CATV network. Each unit of our products will go through 3 QC procedures: Material checking before production, stability and performance testing after production and packing checking before delivery.

Currently, most of our products have been exported to Europe, Russia, and South America. Welcome numerous agents, integrated dealers, and equipment producersall over the world to cooperate with us, to the greatest extent possible to meet your needs.


Outdoor 2/4/8/12/16/24/30 Core Stranded Messenger Wire Self-Supporting Aerial Figure 8 Cable Armored Optical Fiber Cable GYTC8S/Gyxtc8s

FAQ:

Are you a factory or trade company?
JXL fiber is a the real factory meanwhile we are listed company

What is your main product?

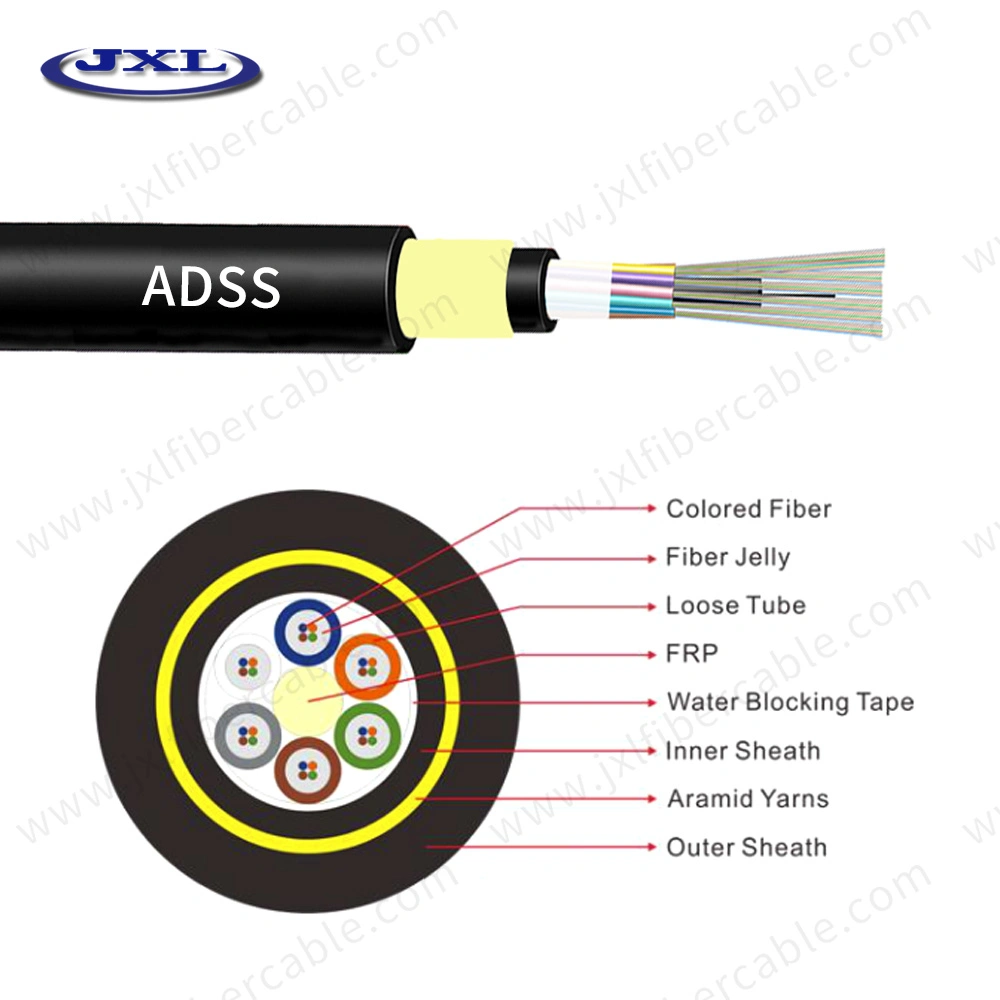

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables; ADSS;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.

Product quality guarantee period?
25 years' Guarantee for fiber optic cable

Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001, ROHS  raw material suppliers.

What is your delivery time?
Within 24 hours for 50KM normal kinds of fiber optic cable;
1 ~2 working days for fiber optic patch cords with 10000 connectors.


MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there's stock for normal kinds.


Payment
For large orders: T/T, L/C
For small orders: T/T,Western Union and Paypal are acceptable.


Shipping & Delivery
Normal orders: shipped by sea
Sample orders: by sea , by air
